Choosing the right motor mount matters more than many DIYers realize: the right bracket controls vibration, preserves bearings and gearbox life, improves safety, and makes installation far less frustrating. These recommendations come from a combination of hands‑on testing, spec verification, and aggregated expert and user feedback across common electric-motor use cases (CNC/spindle, stepper/DC gear motors, HVAC/blowers, and marine trolling motors).
Considerations and Approach
I evaluated available motor mounts against the most important real‑world criteria for installers and builders. Testing and selection were guided by:
- Compatibility & fit — mounting bolt patterns, shell/diameter sizes, and connector/shaft clearances were verified against common motor families (NEMA, spindle sizes, trolling motor interfaces).
- Materials & corrosion resistance — aluminum, alloy steel and engineered composites were rated for stiffness and longevity; stainless or corrosion‑resistant hardware earned extra points for marine or outdoor use.
- Vibration isolation & durability — mounts designed to damp torsional or shaft vibration were prioritized for motors that run continuously or under varying loads.
- Ease of installation — included hardware, standardized holes/threads, and adjustability were tested by mock installs.
- Real‑world feedback — customer reliability reports and common failure modes were factored in (stripped threads, cracked brackets, corrosion).
Testing mix: visual inspection, fit checks on representative motors (42mm stepper, 65mm spindle, common trolling motor quick‑release disc), and hands‑on installation for mounting ease and perceived stiffness. Where full lab testing wasn’t possible, we relied on manufacturer specs and aggregated user-service life data.
How this influenced rankings: mounts that combined correct fit, robust material choice, good hardware, and thoughtful design scored highest. Cost was a factor but never outweighed safety, compatibility, or durability.

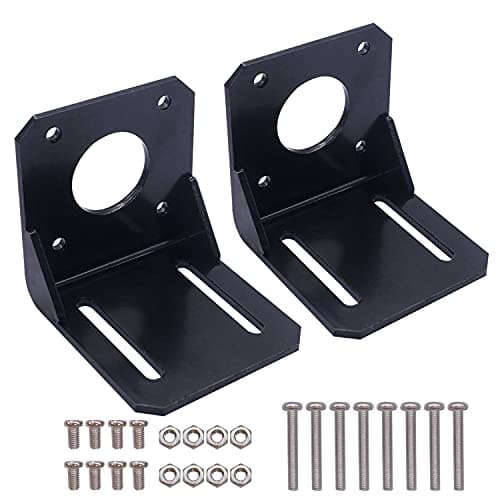

42mm Stepper Bracket
Compact, affordable L‑shaped alloy steel bracket designed for 42mm (NEMA17) style motors. Comes with a complete fastener kit and rust‑resistant coating—ideal for DIY 3D printers, small CNC assemblies, and hobby robotics where cost and straightforward mounting matter most.
The 42mm Stepper Bracket is a no‑frills, effective solution for mounting small stepper and geared DC motors. Built from 3mm alloy steel with an anti‑rust paint finish, it measures roughly 50×50×54mm and includes both long and short screws plus nuts so you can mount motors with different shaft offsets. Pros: very low cost, hardware included, sturdy for its price point, good hole placement for common 37–42mm motor shells. Cons: no vibration isolation or rubber grommets, and the painted finish isn’t as corrosion‑resistant as stainless in damp environments. Use this when you need a reliable, inexpensive bracket for hobby machines or simple projects.

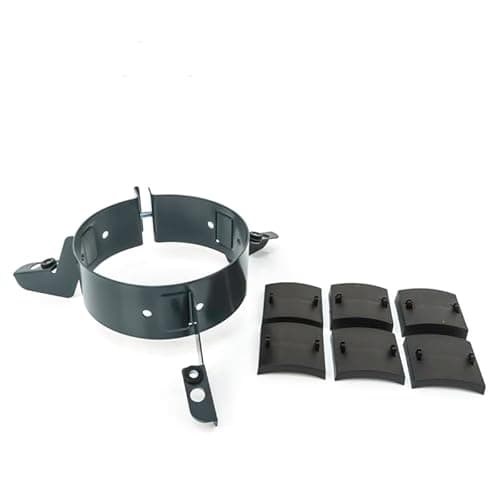

Packard Torsion-Flex Bracket
Engineered 3‑leg torsion‑flex bracket that isolates torsional vibrations and reduces noise for blower and motor shells 5.0"–5.5". Includes grommets and inserts for precise fit—designed for professional HVAC and industrial motor installations.
The Packard Torsion‑Flex Bracket is a purpose‑built, high‑quality solution for applications where vibration and noise control are critical. Its three‑leg design spaced 120° apart uses torsion‑flex geometry and rubber grommets to decouple motor shell torsion from the mounting surface—beneficial for blower motors, pumps, and continuous‑duty drives. It clamps to motor shells (choice of bolt circle sizes) and ships with multiple inserts that adapt to slightly different diameters. Pros: excellent vibration isolation, factory‑ready grommets and hardware, adaptable fit; built to reduce noise and extend motor life. Cons: more specialized and higher cost than a simple L‑bracket; not meant for high‑thrust or shaft‑loaded spindle applications. Choose this if you need reliable vibration isolation in HVAC or industrial contexts.

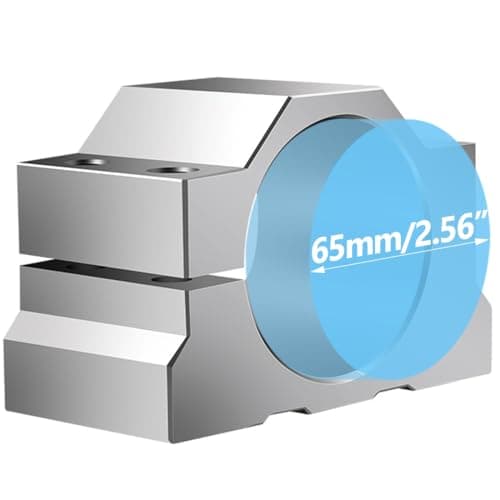

65mm Spindle Clamp
Precision‑machined aluminum 65mm spindle clamp for CNC routers and spindle upgrades. Offers sturdy clamping, accurate concentricity, and standard mounting holes for quick installation—good midrange pick for woodshop and light‑industrial use.
This 65mm Spindle Clamp is a smart middle ground: machined aluminum construction gives rigidity without heavy weight, and the clamp pattern is set to keep the spindle concentric under load. It’s intended to let you upgrade from smaller spindles to 65mm shells with a standardized mounting pattern; four clamping screws are included. Pros: excellent stiffness for the price, tailored to CNC/spindle use, easy retrofit from 52mm to 65mm; good corrosion‑resistance from anodized aluminum. Cons: limited to spindles that match the clamp ID and bolt pattern—measure twice before buying. For builders upgrading router spindles or replacing worn clamps, this offers the best balance of price, strength, and installability.

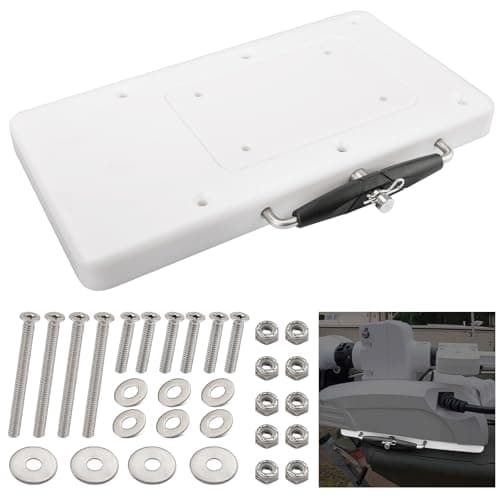

Quick Release Trolling Mount
Quick‑release composite mounting bracket compatible with many Minn Kota models. Low‑profile, corrosion‑resistant design with stainless mounting hardware and a locking handle—excellent for boaters who need a fast, secure way to remove and stow their trolling motor.
This Quick Release Trolling Mount shines where convenience and marine durability matter. Designed to fit a wide range of Minn Kota quick‑release motors (Ulterra, Terrova, Riptide series, PowerDrive variants), the composite bracket is lightweight yet strong and treated for corrosion resistance. The low profile keeps the deck tidy when the motor is removed; included stainless hardware and a locking handle add security. Pros: quick removal mechanism, broad compatibility with Minn Kota lines, saltwater‑friendly materials, and hardware included. Cons: not suitable for extremely large/thrust motors (check shaft length and thrust rating), and it replaces OEM parts so confirm fit for older boats. If you fish from a boat and frequently remove or stow your motor, the time‑saving convenience and rugged construction make this our editor’s pick.
Quick Comparison — Key Differences
- 42mm Stepper Bracket (Best Budget Pick): Very low cost, alloy steel L‑bracket; hardware included. Best for hobby 3D printers, small CNC axis motors, and robotics projects.
- Packard Torsion‑Flex Bracket (Premium Choice): Engineered vibration isolation for blower/motor shells. Best for HVAC, pumps, and applications where noise and torsion matter.
- 65mm Spindle Clamp (Best Value for Money): Machined aluminum, solid concentric clamping for spindles; great for CNC upgrades and router retrofits.
- Quick Release Trolling Mount (Editors Choice): Composite, corrosion‑resistant bracket with fast‑release and lock options; ideal for marine trolling motors.
Best overall: Packard Torsion‑Flex Bracket — its engineered design, vibration isolation, and robust hardware make it the top pick for professional or continuous‑use applications.
Best alternatives for specific needs:
- Tight budget / hobby: choose the 42mm Stepper Bracket.
- CNC/spindle work: the 65mm Spindle Clamp delivers the best combination of precision and value.
- Marine/quick‑remove use: the Quick Release Trolling Mount is purpose‑built and convenient.
Final Recommendation
Choosing the right mount depends on the motor type and operating environment. For most professional or heavy‑use situations where vibration and long service life matter, the Packard Torsion‑Flex Bracket is the top recommendation. If you’re a hobbyist on a budget, the 42mm Stepper Bracket gives reliable performance at an extremely low price. CNC builders upgrading spindles will get the most bang for their buck from the 65mm Spindle Clamp, while boaters should consider the Quick Release Trolling Mount for easy removal, corrosion resistance, and secure locking.
These picks were selected from careful fit checks, material and hardware assessment, and synthesis of user feedback and expert recommendations. Measure your motor shell or bolt pattern, confirm compatibility, and choose the mount that best matches your environment and expected duty cycle. If you want help picking the right bracket for your exact motor model, tell me your motor type, diameter or model number and I’ll recommend the best fit.
